Description
Fluid Path Sterile & Blood Compatible
Part Number | MPC-855 | MPC-860 | MPC-865 | MPC-870 |
---|---|---|---|---|

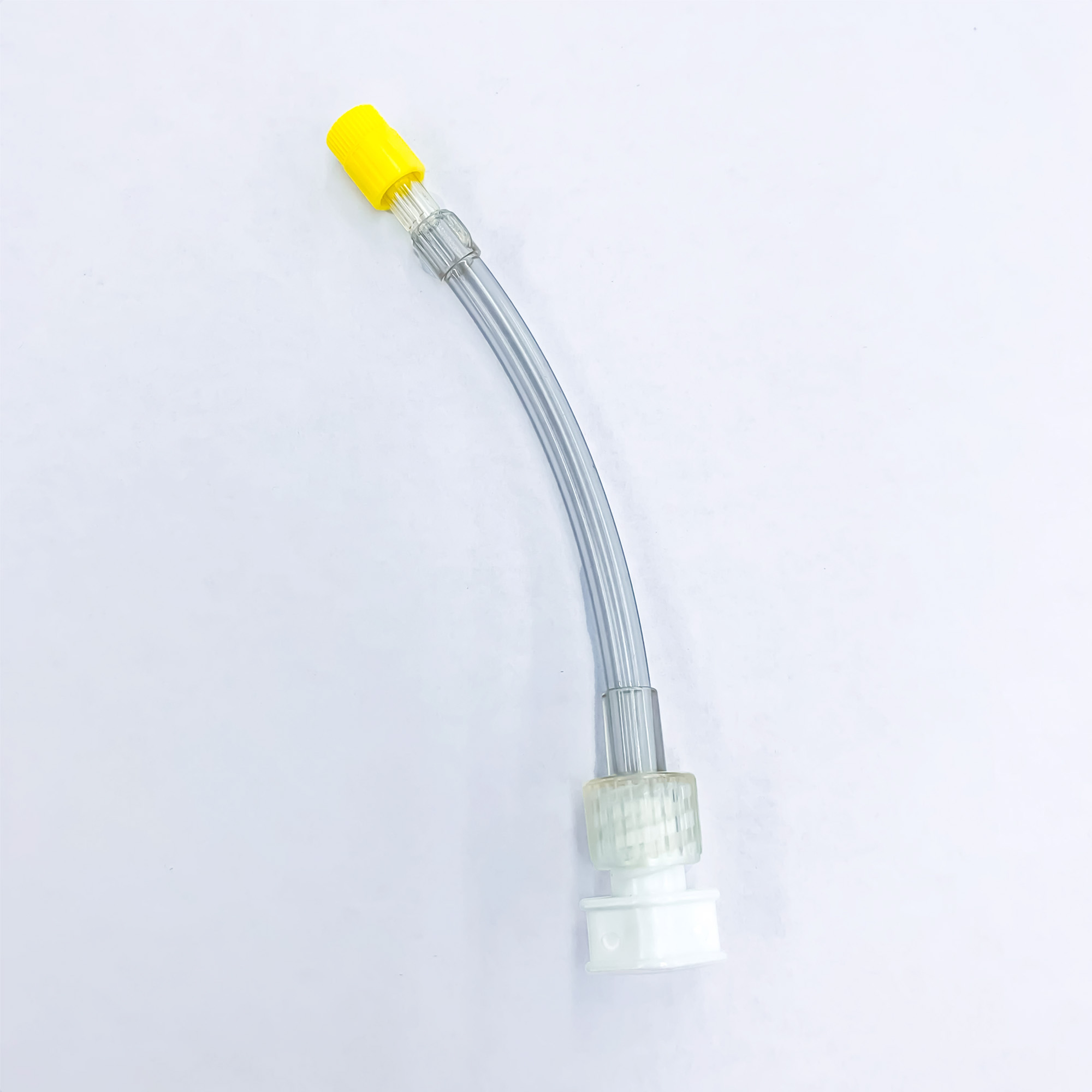

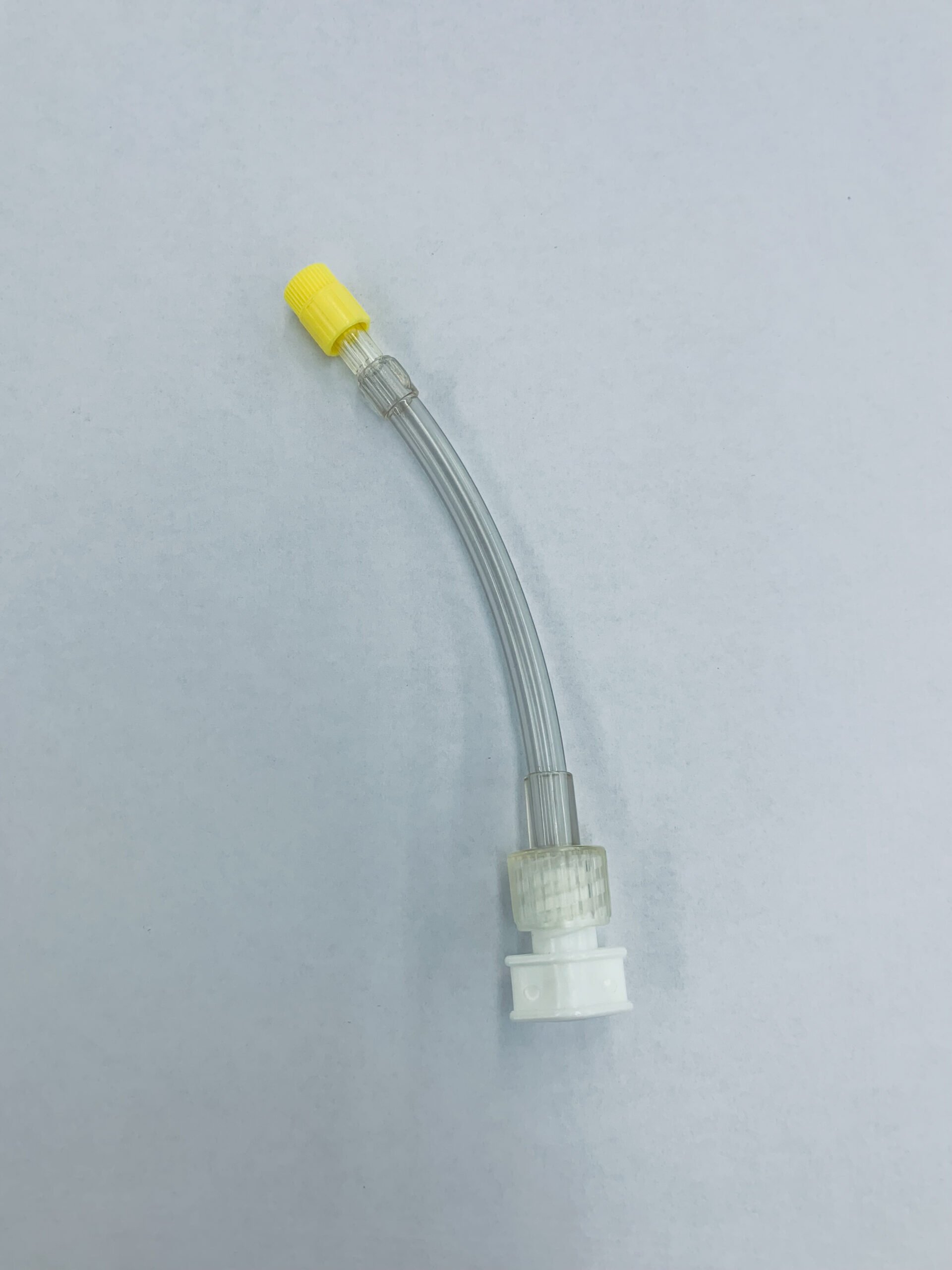

Description | DIN Adapter | Male Luer Lock Fitting to Female DIN Connector | Female Luer Lock Fitting to Male DIN Connector | Male Luer to Female Luer Connector |
Connectors | (1) Barb Fitting and (1) Female DIN Fitting | (1) Male Luer Lock Fitting and (1) Female DIN Fitting | (1) Female Luer Lock Fitting and (1) Male DIN Connector | (1) Female Luer Lock and (1) Rotating Male Luer Lock Connector |
Overall Length | 1-5/8″ | 4.5″ | 4.5″ | 12″ |
End Caps | No | Yes | Yes | Yes |
Packaging | 10 sets per bag (2) pcs. per set or 50 sets per case | Individually packaged 25 pcs. per bag or 750 pcs per case | Individually packaged 25 pcs. per bag or 750 pcs per case | Individually packaged 25 pcs. per bag or 750 pcs per case |
Possible Use | DIN Adapter fits 3/16″ ID Tubing | Recirculation Set Extension Adapter | Recirculation Set Extension Adapter | Bloodline Extension |
