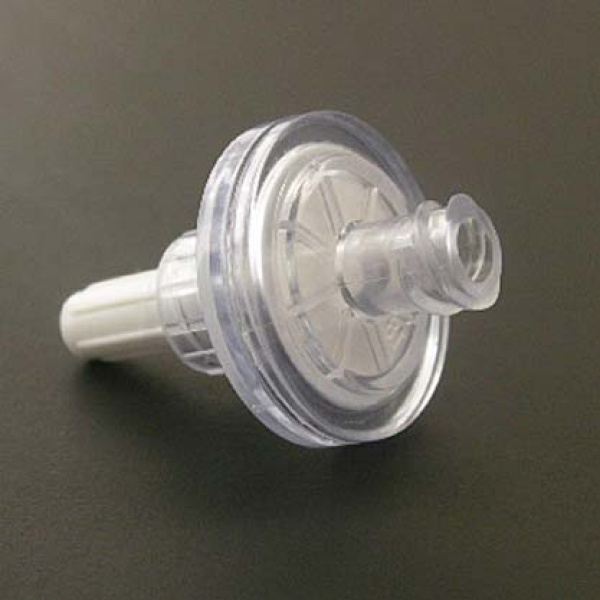

Transducer Protector

Transducer Protector

MPC-85

    Please log in to see prices


In-Line Protective Devices For Pressure Monitors On Hemodialysis Equipment
Our Transducer Protectors provide the right combination of barrier properties and airflow so they can deliver the best protection possible to everyone involved in the hemodialysis treatment. High airflow through the MPC-85 Transducer Protector membrane also allows hemodialysis equipment to rapidly respond to changes in blood pressure so patients can receive the highest quality of care.
 Part Number
Packaging
MPC-85 Bulk Packaged 300 pcs. per box / 7,500 pcs. per case
MPC-85TE Tamper Evident Individually Packaged 125 pcs. per box /2,750 per case
 Special Features:
  • Helps prevent blood and dialyzing fluid from damaging sensitive transducers.
  • Hydrophobic membrane with 0.2 micron pore size.
  • Prevents contamination of the internal pressure monitoring lines.
  • Sterile, Non-Pyrogenic!
  • Ridged finger grip around the outside for better grip.
  • Fast response!
  • Helps protect against both bacterial and viral cross-contamination.
Comparable to :
B.Braun* Part # 7210496      Medivators* Part # 78398-402
Dimensions                             Materials
Inlet to outlet  1.1" (23mm) Housing PVC
Diameter .9" (20mm) Hydrophobic Membrane PTFE(Goretex)
Filtration Area 1.5 cm² Membrane pore size 0.2µm
Connections
 Line Side Standard Luer Lock
Machine Side Standard Luer Lock
Pressure Limit 35 PSI Inlet
Characteristics High Flow / Fast Response
