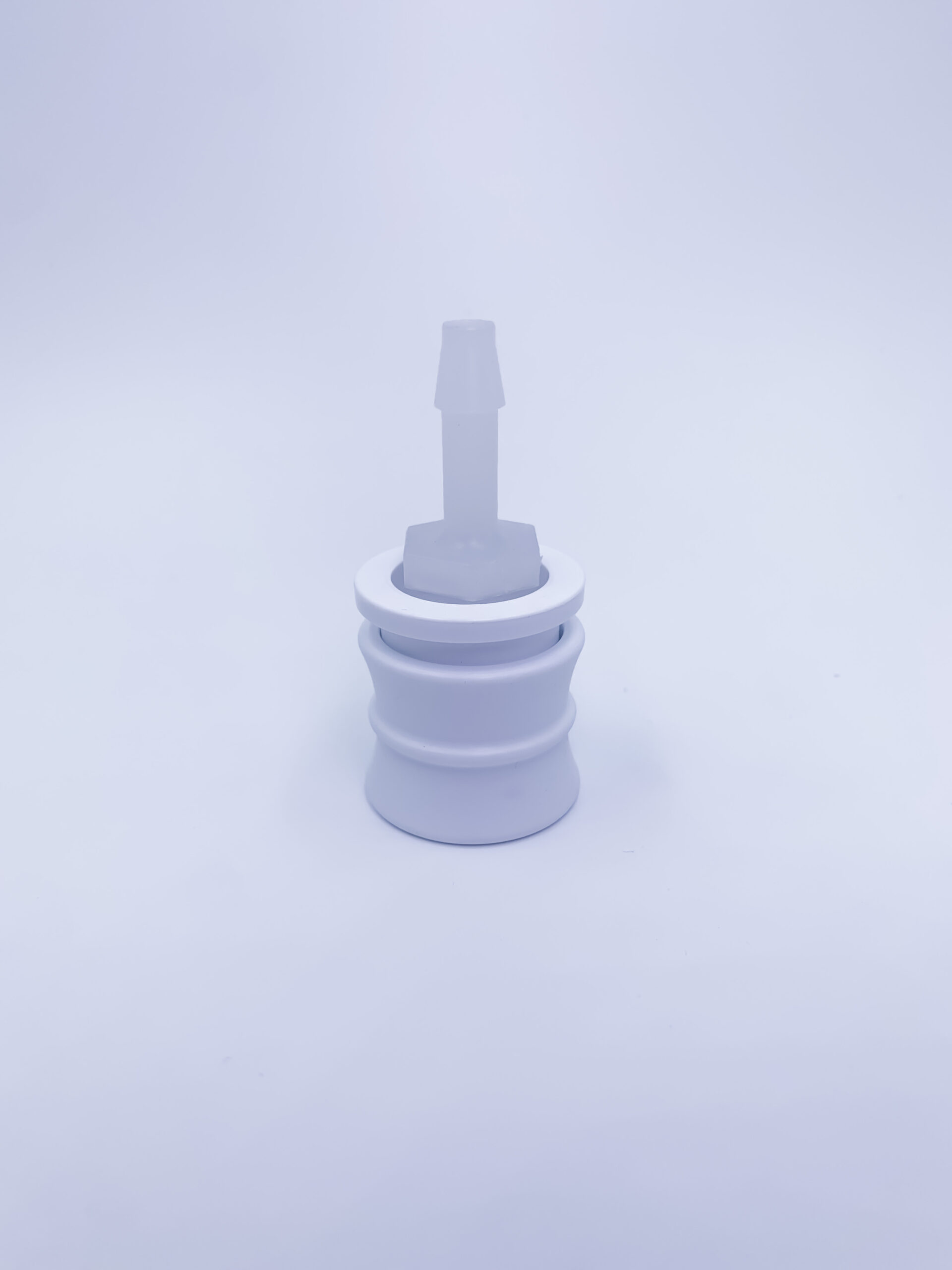

High-Temp Female Hansen Connectors—Barbed

$420.13 / box

High-Temp Female Hansen Connectors—Barbed

$420.13 / box

Also known as Dialyzer Ports Quick Disconnects

10pcs. per box / 80 pcs. per case

Description

Connectors for connecting a dialysate port of a dialyzer to a dialysate-delivery line of a dialysis machine.

Excellent chemical resistance.

Easily engaged and disengaged from the dialyzer port.

These high temp Hansen connectors are made for use with machines using heat sterilization, including Fresenius® and Aksys®.

O-Ring Material: Viton

Ball Material: Borosilicate Glass

Available in Red, White, or Blue

Packaged 10pcs. Per box / 80 pcs. Per case

Product Equivalence:

  • MPC-773 → MPC-1010
  • MPC-771 → MPC-1011
  • MPC-772 → MPC-1013
  • MPC-784 → MPC-1012
Part Number Configuration Size
MPC-771 Barbed Fits 1/4″ ID Tubing
MPC-772 Barbed Fits 5/16″ ID Tubing
MPC-773 Angled Barb Fits 1/4″ ID Tubing
MPC-774 Angled Barb Fits 5/16″ ID Tubing
MPC-776 Threaded
Comparable To:
RPC® #D300-0108
3/8-18 NPT Male
MPC-777 Threaded 1/4-18 NPT Male
MPC-778 90° Angled Barb Fits 5/16″ ID Tubing
MPC-779 Threaded (Internal) 1/2-14 NPT Female
MPC-782 90° Angled Barb Fits 1/4″ ID Tubing
MPC-784 Barbed Fits 1/8″ ID Tubing

Additional information

Weight 355.8 g
Dimensions 9 × 7 × 4 in
Color

Blue, Red, White

Part Number

MPC-771, MPC-772, MPC-784
