Description
Connectors for connecting a dialysate port of a dialyzer to a dialysate-delivery line of a dialysis machine.
Excellent chemical resistance.
Easily engaged and disengaged from the dialyzer port.
These high temp Hansen connectors are made for use with machines using heat sterilization, including Fresenius® and Aksys®.
O-Ring Material: Viton
Ball Material: Borosilicate Glass
Available in Red, White, or Blue
Packaged 10pcs. Per box / 80 pcs. Per case
Product Equivalence:
- MPC-773 → MPC-1010
- MPC-771 → MPC-1011
- MPC-772 → MPC-1013
- MPC-784 → MPC-1012
| Part Number | Configuration | Size |
|---|---|---|
| MPC-771 | Barbed | Fits 1/4″ ID Tubing |
| MPC-772 | Barbed | Fits 5/16″ ID Tubing |
| MPC-773 | Angled Barb | Fits 1/4″ ID Tubing |

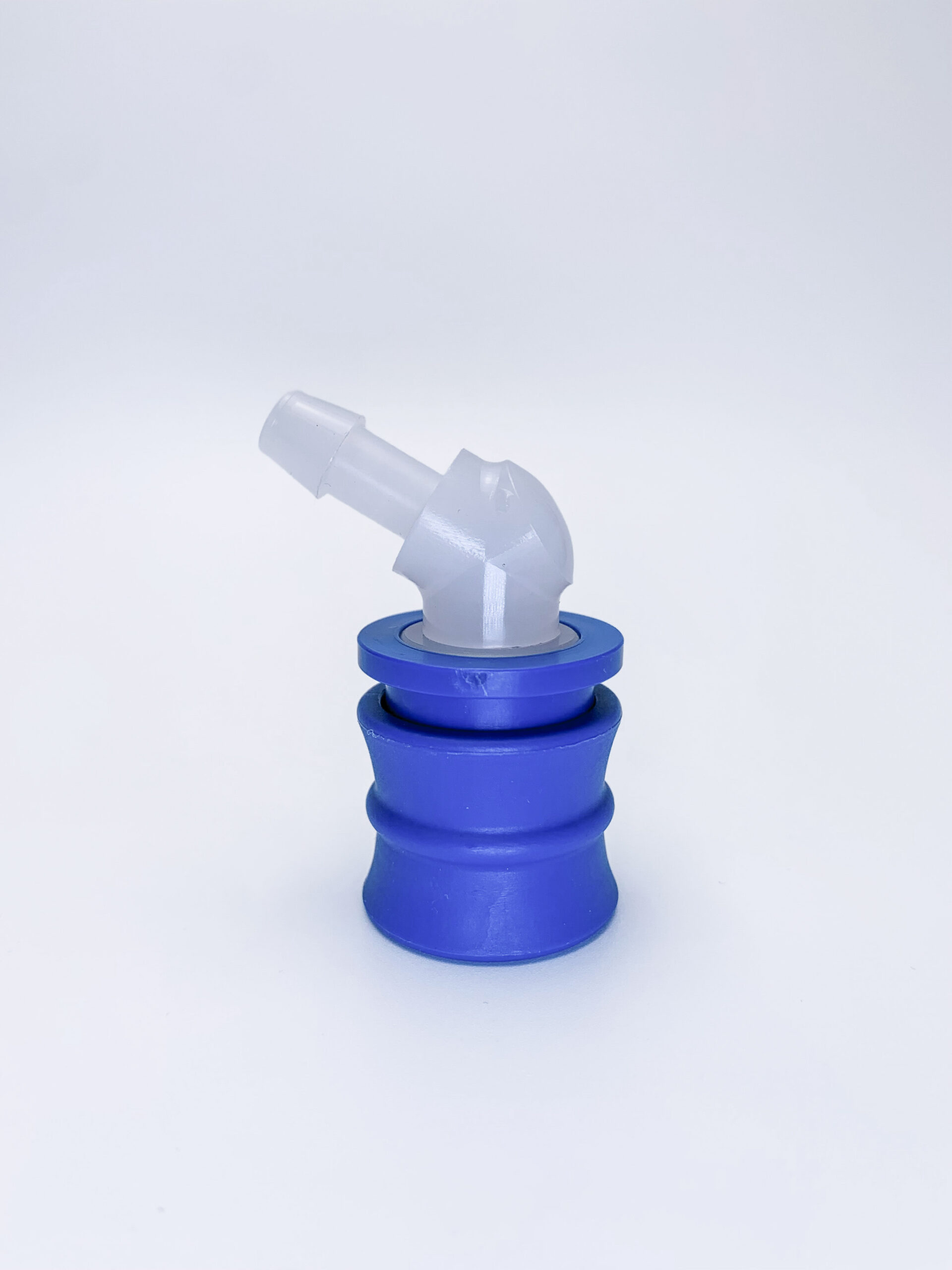

| MPC-774 | Angled Barb | Fits 5/16″ ID Tubing |
| MPC-776 | Threaded Comparable To: RPC® #D300-0108 |
3/8-18 NPT Male |
| MPC-777 | Threaded | 1/4-18 NPT Male |
| MPC-778 | 90° Angled Barb | Fits 5/16″ ID Tubing |
| MPC-779 | Threaded (Internal) | 1/2-14 NPT Female |
| MPC-782 | 90° Angled Barb | Fits 1/4″ ID Tubing |
| MPC-784 | Barbed | Fits 1/8″ ID Tubing |
