Products / Products / Hansen Style Connectors / Male Hansen Connectors
MPC-769
MPC-770
MPC-780
MPC-781
MPC-785

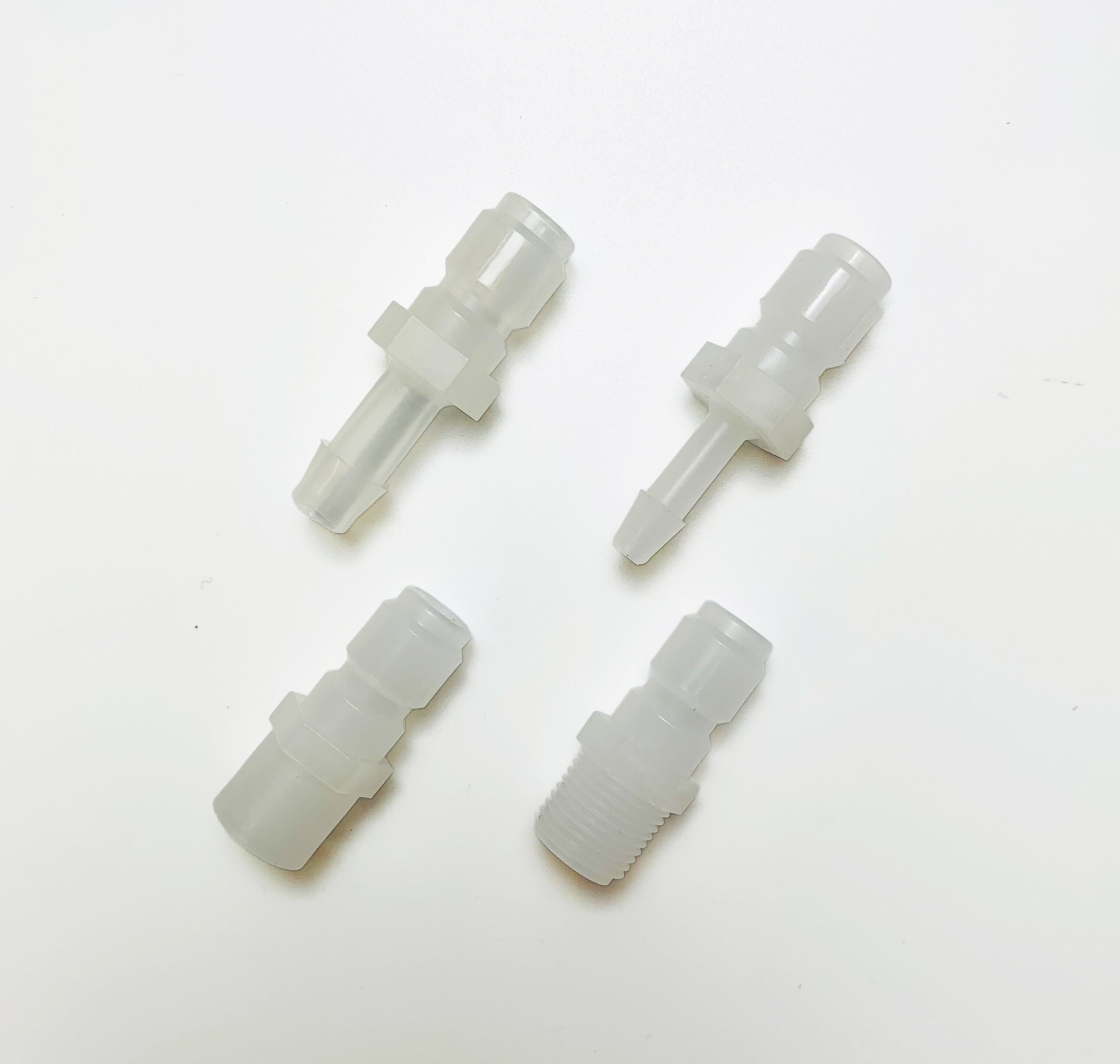

Male Hansen Connectors

Please login to see price.

SKU: MPC-769 Category: Hansen Style Connectors Tags: 3/18-18 NPTF, High Temp Male Hansen Connector, Male Hansen, Male Hansen with thread, MPC-769, MPC-770, MPC-780, MPC-781, MPC-785 Hansen Connectors, Threaded Male Hansen Connector
  • Description
  • Additional information

Description

Easy To Use And Reliable Quality

MPC-769/MPC-770: Single barbed fittings minimize leaks by having a smoother sealing surface than multi-barbed.

MPC-769: For use with all machines using heat sterilization. Maximum sterilization temperature 282°F.

Packaged 10pcs. Per bag / 200 pcs. Per case

 Rated Pressure

Temperature* PSI BAR
75° 110 8
200° 30 2

*246°F maximum sterilization temperature


Lightweight!  Low Cost!  Excellent Chemical Resistance!


Part Number Material Configuration C D Hex
MPC-769 PVDF Fits 1/4″ ID Tubing 2.08 0.79 0.68
MPC-770 Polypropylene Fits 3/8″ ID Tubing 2.12 0.79 0.68
MPC-780 Polypropylene 3/8-18 NPT Male 1.70 0.79 0.68
MPC-781 Polypropylene 1/4-18 NPT Female 1.70 0.79 0.68
MPC-785 Polypropylene 1/4-18 NPT Male 1.70 0.79 0.68




Additional information

Weight 74 g
Dimensions 2.49 × 2.49 × 3.40 in
Configuration

MPC-769, MPC-770, MPC-780, MPC-781, MPC-785
